Marnex™ for Adhesive

Industrial solutions provider based on high-performance polyester

Based on our functional modified polyester products, we focus on household appliance, construction, electrical and electronics, food packaging, solar photovoltaic and printing industries to provide coating, adhesive and printing ink solutions.

Excellent product quality is our pursuit. We get customers’ trust by quality reliability.

Intimate Cooperation with customers is our strategy.New products and solutions are carried out by cooperating with customers on projects.

Product Description:


As a high molecular weight polyester resin for adhesives, the products of MARNEX™ series are saturated, amorphous, and linear. They have good flexibility, stretch resistance, they can be cured and cross-linked with isocyanate, amino resin, etc. to obtain good bonding strength. By adding different functional monomers in the processing of this series of products, the MARNEX™ series products are modified to be more adaptable, can be widely used as adhesives for Solar cell backplane, reflective material, Industrial coating, electronics, food packaging and pharmaceutical packaging.


Features:


Excellent adhesion to PET, PVC, other plastic films and metal substrates such as aluminum foil, steel plate, aluminum plate, etc.;

Good durability, high elongation, can resist thousands of bendings while keep good flexibility and adhesion strength;

After being cross-linked with curing agents such as isocyanate and amino resin, they can obtain higher bonding strength;

Yellowing resistance, water-boiling resistance, high temperature resistance, high humidity resistance and aging resistance;

Good for heat sealing and short opening time;

High temperature resistance, anti-sticking;

Good pigment dispersion.



AH series - High Tg, hard type

 Item  Form Structure  Molecular weight(Mn) Tg( Softening point() Specific gravity(g/cm³, 23°C) Acid value(mg KOH/g)  Hydroxyl value(mg KOH/g)  PET film PVC film Aluminium foil PVDF(PVF) film Metal Glass Plastics Heat seal Flexible Flat Cable(FFC)                          Flexible packaging for food Flexible packaging for medicine Solar cell back sheet PUR Gravure ink Heat transfer Screen printing ink
AH760 pellet L 22,000 72 139 1.15 1 4
AH660 pellet L 21,000 67 145 1.25 1 4
AH653 pellet B 20,000 63 120 1.19 10 8
AH651 pellet L 17,000 66 144 1.01 1 4
AH650 pellet L 20,000 68 152 1.15 1 4
AH645 pellet L 15,000 66 149 1.17 1 4
AH448 pellet L 15,000 40 116 1.19 1 6
AH458 pellet B 20,000 40 118 1.22 5 8
AH620 pellet B 5,000 62 116 1.22 15 22
AH550 pellet L 21,000 53 104 1.18 1 6
AH540 pellet B 15,000 57 139 1.03 6 8
AH469 pellet L 23,000 48 149 1.28 1 6
AH353 pellet L 16,000 32 121 1.16 1 6
AH441 pellet B 12,000 40 111 1.20 8 6
L-linear;  B-branched

AL series - Low Tg, soft type

 Item  Form Structure  Molecular weight(Mn) Tg( Softening point() Specific gravity(g/cm³, 23°C) Acid value(mg KOH/g)  Hydroxyl value(mg KOH/g)  PET film PVC film Aluminium foil PVDF(PVF) film Metal Glass Plastics Heat seal Flexible Flat Cable(FFC)                          Flexible packaging for food Flexible packaging for medicine Solar cell back sheet PUR Gravure ink Heat transfer Screen printing ink
AL260 sheet B 20,000 20 114 1.00 2 4
AL148 sheet B 15,000 19 116 1.24 14 7
AL171 sheet L 28,000 16 102 1.16 1 4
AL120 sheet L 7,000 12 69 1.12 1 15
AL150 sheet L 21,000 12 103 1.19 1 6
AL160 sheet B 20,000 12 100 1.22 1 8
AL177 sheet L 27,000 12 114 1.19 1 5
AL051 sheet L 20,000 6 89 1.18 1 6
AL072 sheet L 26,000 12 106 0.92 1 6
AL147 sheet B 15,000 7 89 1.11 3 15
AL030 sheet L 9,000 4 56 1.17 1 18
AL046 sheet L 10,000 4 63 1.19 3 9
AL090M sheet L 42,000 -8 61 1.16 1 3
AL098M sheet L 40,000 -10 93 1.19 1 3
AL088M sheet L 36,000 -22 91 1.10 1 4
L-linear;  B-branched
  • Product GuideScreen printing ink

    PET film, PVC film and other screen printing ink are widely applied in home appliance marks, film touch switch, soft circuit board printing, computer case and etc. Marnex AH & AL products are used as electronic screen ink adhesive due to their good adhesion to PET film, transparency and good pigment wettability.

  • Product GuideFlexible package

    Flexible package is all kinds of bags and boxes made from paper, aluminum foil, fiber, plastic film and their composite. Marnex AL & AH products are used as laminating adhesive and heat-seal coating among paper, film and aluminum foil.

  • Product GuideSolar cell backing

    Solar backing material composed of PET film and PVDF film is a structural packaging material and a protection material in the substrate of solar cell. Marnex AL & AH products are used as adhesive between PET film and PVDF and PVF fluoride film.

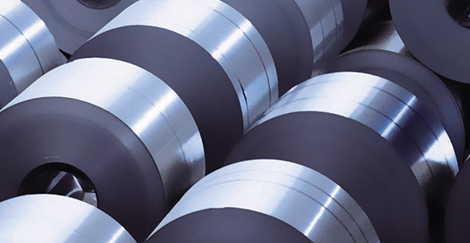

  • Product GuideSteel lamination

    Steel lamination is a method that the adhesive is applied to a polyester film, rolled it up and then hot pressed with steel. After peritoneal, the steel is widely used in home appliance, heating machine, building materials, utensil and etc. Marnex AL & AH products can be applied in making gloss film adhesive between PVC and PET and also adhesive between PVC or PET and steel.

  • Product GuideLight reflective film

    Light reflective films are mainly used in reflective mark in transportation, automotive, road, commercial advertising and personal reflective products, in which adhesive resin is the main raw material. Marnex AL & AH products are used as adhesive resin and coating resin in reflective films, reflective cloth and reflective textile.

  • Product GuideThermal transfer ribbon

    Thermal transfer ribbon is to print patterns on PET film or other film, and then transfer it to products by thermal transfer machines. Marnex AL & AH products are used in making PET or PVC transfer film.

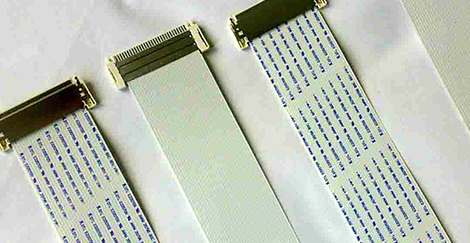

  • Product GuideFFC

    FFC and FCCL need hot melt adhesive film made of polymer composite material. Marnex AH & AL products can be used in making this hot melt adhesive prepared on PET film.
